Build a full Sorting pipeline with dicts

When using SpikeInterface there are two phases. First, you should play: try to figure out any special steps or parameters you need to play with to get everything working with your data. Once you’re happy, you then need to build a sturdy, consistent pipeline to process all your ephys sessions.

It is now possible to create a flexible spike sorting pipeline using three simple dictionaries: one for preprocessing (and the PreprocessingPipeline), another for sorting (and run_sorter), and a final one for postprocessing (and the compute method). Here’s an example:

import spikeinterface.full as si

my_protocol = {
    'preprocessing': {
        'bandpass_filter': {},
        'common_reference': {'operator': 'average'},
        'detect_and_remove_bad_channels': {},
    },
    'sorting': {
        'sorter_name': 'mountainsort5',
        'verbose': False,
        'snippet_T2': 15,
        'remove_existing_folder': True,
        'progress_bar': False
    },
    'postprocessing': {
        'random_spikes': {},
        'noise_levels': {},
        'templates': {},
        'unit_locations': {'method': 'center_of_mass'},
        'spike_amplitudes': {},
        'correlograms': {},
    },
}

# Usually, you would read in your raw recording
rec, _ = si.generate_ground_truth_recording(num_channels=4, durations=[60], seed=0)
preprocessed_rec = si.apply_pipeline(rec, my_protocol['preprocessing'])
sorting = si.run_sorter(recording=preprocessed_rec, **my_protocol['sorting'])
analyzer = si.create_sorting_analyzer(recording=preprocessed_rec, sorting=sorting)
analyzer.compute(my_protocol['postprocessing'])

This is a full and flexible spike sorting pipeline in 5 lines of code!

To try out a different pipeline, you only need to update your protocol dicts.

Once you have an analyzer, you can then do things with it:

analyzer.save_as(folder="my_analyzer")

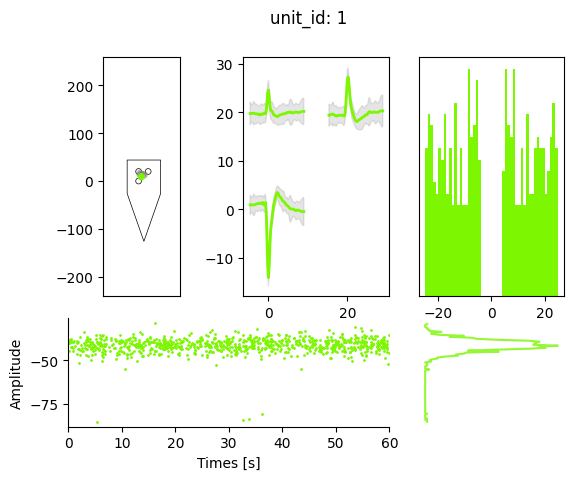

si.plot_unit_summary(analyzer, unit_id=1)

/home/nolanlab/Work/Developing/fromgit/spikeinterface/src/spikeinterface/widgets/unit_waveforms.py:183: UserWarning: templates_percentile_shading can only be used if the 'waveforms' extension is available. Settimg templates_percentile_shading to None.
  warn(

<spikeinterface.widgets.unit_summary.UnitSummaryWidget at 0x7b122f7419d0>

The main disadvantage of the dictionaties approach is that you don’t know exactly what options and steps are available for you. You can search the API for help. Or we store many dictionaries of tools and parameters, as is shown below.

Get all preprocessing steps:

from spikeinterface.preprocessing.pipeline import pp_names_to_functions
print(pp_names_to_functions.keys())

dict_keys(['filter', 'bandpass_filter', 'highpass_filter', 'notch_filter', 'gaussian_filter', 'normalize_by_quantile', 'scale', 'center', 'zscore', 'scale_to_physical_units', 'whiten', 'common_reference', 'phase_shift', 'detect_and_remove_bad_channels', 'detect_and_interpolate_bad_channels', 'rectify', 'clip', 'blank_saturation', 'silence_periods', 'remove_artifacts', 'zero_channel_pad', 'deepinterpolate', 'resample', 'decimate', 'highpass_spatial_filter', 'interpolate_bad_channels', 'depth_order', 'average_across_direction', 'directional_derivative', 'astype', 'unsigned_to_signed'])

You can then check the arguments of each preprocessing step using e.g. their docstrings (in Jupyter you can run si.bandpass_filter? and in the terminal help(si.bandpass_fitler))

print(si.bandpass_filter.__doc__)

Bandpass filter of a recording

Parameters
----------
recording : Recording
    The recording extractor to be re-referenced
freq_min : float
    The highpass cutoff frequency in Hz
freq_max : float
    The lowpass cutoff frequency in Hz
margin_ms : float
    Margin in ms on border to avoid border effect
dtype : dtype or None
    The dtype of the returned traces. If None, the dtype of the parent recording is used
**filter_kwargs : dict
    Certain keyword arguments for scipy.signal filters:
        filter_order : order
            The order of the filter. Note as filtering is applied with scipy's
            filtfilt functions (i.e. acausal, zero-phase) the effective
            order will be double the filter_order.
        filter_mode :  "sos" | "ba", default: "sos"
            Filter form of the filter coefficients:
            - second-order sections ("sos")
            - numerator/denominator : ("ba")
        ftype : str, default: "butter"
            Filter type for scipy.signal.iirfilter e.g. "butter", "cheby1".

Returns
-------
filter_recording : BandpassFilterRecording
    The bandpass-filtered recording extractor object

Get the default sorter parameters of mountainsort5:

print(si.get_default_sorter_params('mountainsort5'))

{'scheme': '2', 'detect_threshold': 5.5, 'detect_sign': -1, 'detect_time_radius_msec': 0.5, 'snippet_T1': 20, 'snippet_T2': 20, 'npca_per_channel': 3, 'npca_per_subdivision': 10, 'snippet_mask_radius': 250, 'scheme1_detect_channel_radius': 150, 'scheme2_phase1_detect_channel_radius': 200, 'scheme2_detect_channel_radius': 50, 'scheme2_max_num_snippets_per_training_batch': 200, 'scheme2_training_duration_sec': 300, 'scheme2_training_recording_sampling_mode': 'uniform', 'scheme3_block_duration_sec': 1800, 'freq_min': 300, 'freq_max': 6000, 'filter': True, 'whiten': True, 'delete_temporary_recording': True, 'pool_engine': 'process', 'n_jobs': 1, 'chunk_duration': '1s', 'progress_bar': True, 'mp_context': None, 'max_threads_per_worker': 1}

Find the possible extensions you can compute

print(analyzer.get_computable_extensions())

['random_spikes', 'waveforms', 'templates', 'noise_levels', 'amplitude_scalings', 'correlograms', 'isi_histograms', 'principal_components', 'spike_amplitudes', 'spike_locations', 'template_metrics', 'template_similarity', 'unit_locations', 'quality_metrics']

And the arguments for each extension ‘blah’ can be found in the docstring of ‘compute_blah’, e.g.

print(si.compute_spike_amplitudes.__doc__)

AnalyzerExtension
Computes the spike amplitudes.

Needs "templates" to be computed first.
Computes spike amplitudes from the template's peak channel for every spike.

Parameters
----------
sorting_analyzer : SortingAnalyzer
    A SortingAnalyzer object
peak_sign : "neg" | "pos" | "both", default: "neg"
    Sign of the template to compute extremum channel used to retrieve spike amplitudes.

Returns
-------
spike_amplitudes: np.array
    All amplitudes for all spikes and all units are concatenated (along time, like in spike vector)
